Fruit and Vegetable Cleaning Machine | Tomato Washing Machine

The fruit and vegetable cleaning machine adopts bubble tumbling and spraying technology to clean all kinds of fruits and vegetables. Taizy automatic tomato washing machine have been exported to Australia, Turkey, Mexico and many other countries, please contact us if you need them.

Application of fruit and vegetable cleaning machine

The vegetable bubble cleaner can clean a variety of materials, including fruits, vegetables, and aquatic products. The bubble-type washing machine will remove impurities and keep the original color.
Fruits: apple, pear, orange, grape, mango, peach, tomato, blueberry, strawberry, cherry, etc.
Vegetables: potato, eggplant, cucumber, onion, pepper, lettuce, cabbage, lotus root, sweet potato, taro, okra and so on.
Aquatic products: seaweed, seashell, kelp, octopus, shrimp, fish and so on.

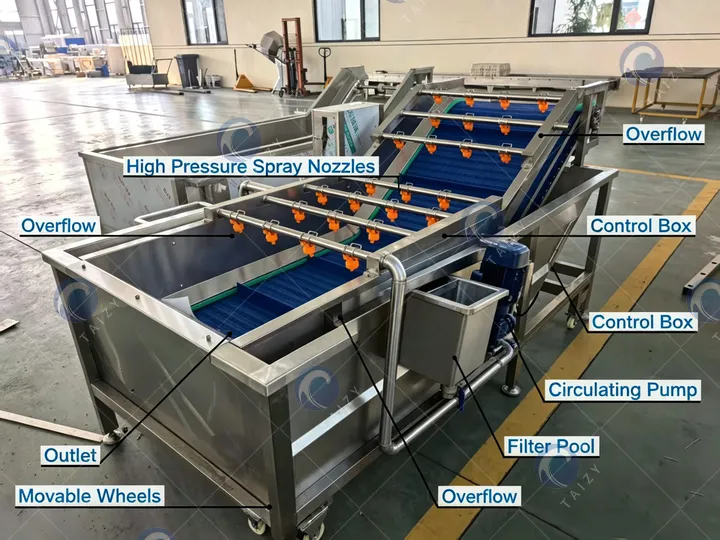

Structure of bubble washing machine

Fruit and vegetable bubble washing machine equipment is composed of a mesh belt conveyor, spray washing device, water collection tank. The components include a motor, vortex booster, filter tank, water pipe and nozzle, electronic cabinet controller, etc.

Advanced design of automatic vegetable washing machine

1. The automatic vegetable washing machine is made of high-quality SUS304 stainless steel, which is of superior quality and meets food-grade requirements, which can ensure the quality and safety of food. No matter how long you use the machine, the tomato washing machine will not rust.
2. The fruit and vegetable cleaning machine comes with a secondary spraying function with recirculating filtering water tank to recycle the cleaning water, saving more than 80% water for customers.
3. The vegetable washing machine can realize automatic continuous washing, and the washing efficiency is more than three times higher than the manual conventional washing method.

Fruit and vegetable washer working process

When the material enters the fruit and vegetable cleaning machine, by the action of high-pressure water and strong bubbles, the fruits and vegetables are fully tumbled and the debris attached to the surface will be washed off. The sediment washed off from the surface of the material is sunk into the bottom isolation bin, therefore, it will not be tumbled back to cause water pollution. The debris and small insects floating in the water are collected through the mesh of the debris removal mechanism. The washed material comes out of the water and then will be washed again by a spraying device. The clean fruit and vegetable will then sent to the next process.

How to operate a bubble washing machine?

1. Connect the main motor of the fruit and vegetable cleaning machine, mesh belt power supply, air pump power supply, and circulating water pump power supply, check the degree of integrity of the power supply line, and start the test machine to see whether the equipment is in positive rotation, if it is reversed, switch any two lines on it.
2. Add the right amount of water to the machine, then adjust the running speed of the mesh belt according to the different materials, and then add the materials.
3. Open the air pump motor and spraying motor and mesh belt motor, the fruit and vegetable washer starts to work.

Parameters of fruit and vegetable cleaning machine

Model	Motor power(kw)	Production capacity(kg/h)	Weight(kg)	Dimensions(mm)
TZ-2500	3.75	500	180	2500*1000*1300
TZ-4000	4.1	800	400	4000*1200*1300
TZ-5000	5.1	1500	500	5000*1200*1300
TZ-6000	5.5	2000	600	6000*1200*1300

Maintainance tips for bubble washing machine

Any machine that wants to be used for a long time requires timely maintenance and careful use. Then it is the same for vegetable washing machine. For example, the parts that make up the machine need to be checked regularly by employees, and the gears and other parts need to be oiled regularly. In addition, employees can adjust the belt tightness regularly to increase the service life of the belt.

Recommended production line

Vegetable and fruit washing and grading line is our company’s hot-selling product. The complete line includes a fruit and vegetable cleaning machine, a vegetable dryer, a vegetable grader and a packaging machine. The machine can be customized by customers’ demands. Tell us your materials, budget and capacity, and our sales manager will provide you with different choices. If you need a food processing machine, contact us now.
